Sewer line repair in Walnut without the trench

Ground that moves, pipe that cracks

Few places put as many different soils under one county's sewer laterals as this one. The beach cities sit on sand with a water table a few feet down. The basin floor is alluvial silt and clay that swells after winter rain and shrinks through the dry months. The foothill and hillside neighborhoods are on bedrock and fill, where a lateral may descend a slope at a steep angle and cross a retaining wall on its way to the street. Out in the Antelope Valley the ground is dense, dry and alkaline. Each of these grounds moves a little every year, and every movement works on the joints of the pipe below it. In Walnut, the material that pipe is made of is mostly a matter of when the house went up.

Reading the house to guess the pipe

Houses from the bungalow era through the 1950s drain through short lengths of vitrified clay, joined with mortar or later a rubber gasket, and the drain lines under the floor are cast iron. Post-war tract homes continued the same pairing. From the late 1970s on, ABS plastic took over for both the lateral and the under-slab lines. Clay fails at its joints, where roots from a parkway tree or a backyard ficus find water and pry the sections apart. Cast iron corrodes from the inside, the floor of the pipe going first, until flow runs on dirt instead of metal. ABS does not rot or root, but it cracks where a slab or a trench settled, and it separates at a glued joint when the ground shifts, as it did across the whole basin in 1994. The camera does not care about any of this history; it simply shows the defect. The history matters because it tells the installer what the fix must survive.

The video decides the method

Nothing is proposed before the line has been cleaned and recorded end to end. The cleaning is a hydro jetting pass that strips roots, scale and grease so the camera sees pipe wall rather than debris. The recording is then reviewed for three things: where each defect sits, measured from the cleanout, how deep the pipe is at that point, and whether the pipe still holds its round shape and its slope. A line that is cracked, rooted or channeled but still in one piece is a lining candidate. A line that has collapsed, flattened or bellied into a low spot that holds water is a bursting candidate, or in the worst case an excavation. A single bad joint in an otherwise sound line gets a sectional sleeve. The video is handed to the owner with the written finding; the proposal follows from it, not the other way around.

Lining, bursting and the one-day job

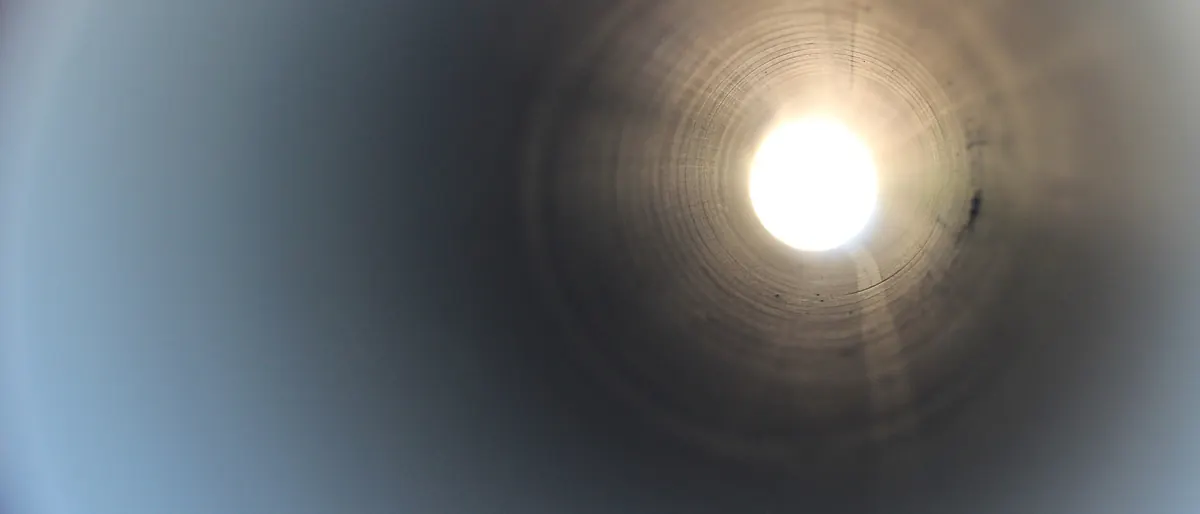

Cured-in-place lining installs a resin-saturated tube through the existing cleanout or a small access, inflates it against the old wall and cures it with heat or light into a seamless pipe inside the old one. Pipe bursting pulls a splitting head through the old pipe from a pit at each end while new high-density polyethylene follows, replacing the line without opening the ground between the pits. Both are normally finished in a working day on a house lot. the TSR Trenchless, Inc. page for Walnut and the rest of the county describes how those methods are scheduled across the county, and the Los Angeles County service hub lists the cities and neighborhoods the crews cover.

Permits, sidewalks and the street

Each city in Los Angeles County issues its own plumbing permits, and the stretch of lateral under the sidewalk and roadway usually belongs to the property owner even though it sits in the public right-of-way. Trenching that stretch means an encroachment permit, traffic control and a paving patch. Rebuilding it from inside avoids all three, and only the connection at the main, when it needs attention, brings the public works inspector out. The installer files the permit, arranges the inspection and leaves the owner with a stamped record.

What a sound proposal contains

Expect the pre-inspection video, a drawing or notes locating each defect, the method chosen and the reason, the liner or pipe specification with its rated service life, the warranty in writing, the permit plan and the name of the crew doing the work. After the job the post-repair video is the proof. The standards the installers in this network are held to are explained at the cured-in-place pipe reference site.
